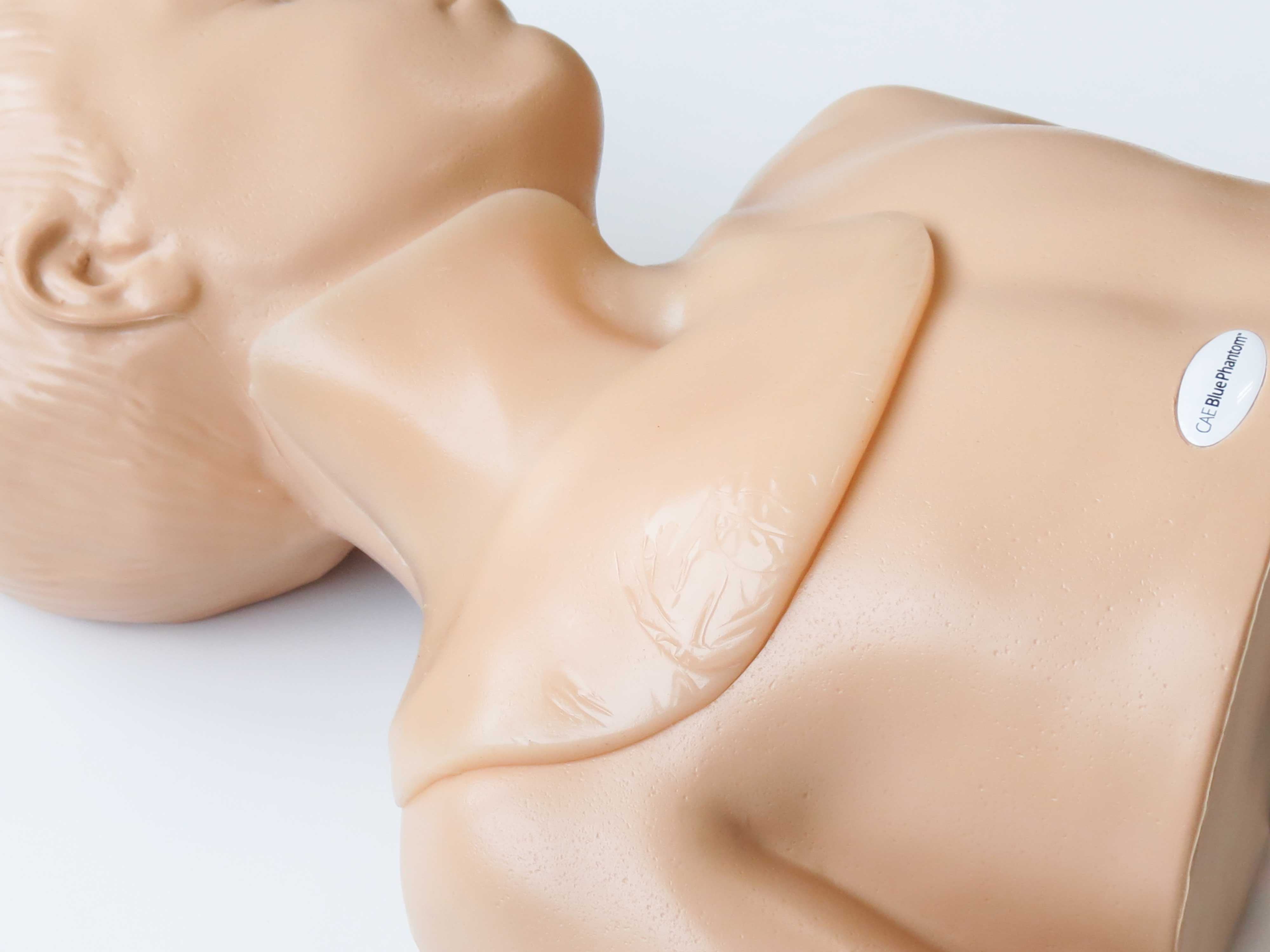

Ultrasound Pediatric Central Line Training Model

Cautions
Please read this instruction guide carefully. Do not begin using this model until you fully understand these safeguards and have read the User Guide in its entirety.

Important Safeguards
1.Read Instructions – All safety and operating instructions should be read before the unit isoperated.
2.While all parts of this User Guide are important, the red flag that you see to the left de-notes especially important content. Please familiarize yourself with all of the content priorto using your training model or damage to the model can occur.
3.Retain Instructions – The safety and operating instructions should be retained for futurereference.
4.Heed Warnings – All warnings in the operating instructions should be adhered to.
5.Follow Instructions – All operating and maintenance instructions should be followed.
6.Care must be taken to place the model in a position in which it will not fall off of the bed orsurface, as this may cause injury.
7.Accessories – Do not place this unit on an unstable cart, stand, tripod, bracket, or table.The unit may fall causing serious injury to a child or adult, and serious injury to the unit.
8.CAUTION: Please use extreme care when using needles and sharp objects as to notaccidentally injure yourself during training.

Using Needles and Catheters
1.For best performance, we recommend that you utilize new, sharp, unbent 18-21gauge needles and associated catheter kits when accessing the structures in themodel; you may utilize up to 7 French Triple-Lumen catheters.
2.Do not use any needle larger than 18 gauge or permanent damage to your modelmay occur.
3.Smaller bore needles (>21 gauge) can bend during use and damage your model’ssimulated tissue.
4.Aggressive repositioning of needles rather than removing and repositioning cancause stubborn or permanent needle tracks due to the needle tip dragging throughthe simulated tissue.
5.Dull needles may also cause permanent damage to the tissue. It is important toreplace needles approximately every ten cannulations.
6.If you strike bone during training, remove the needle and replace it beforere-inserting. Striking bone can cause the needle to become dull.

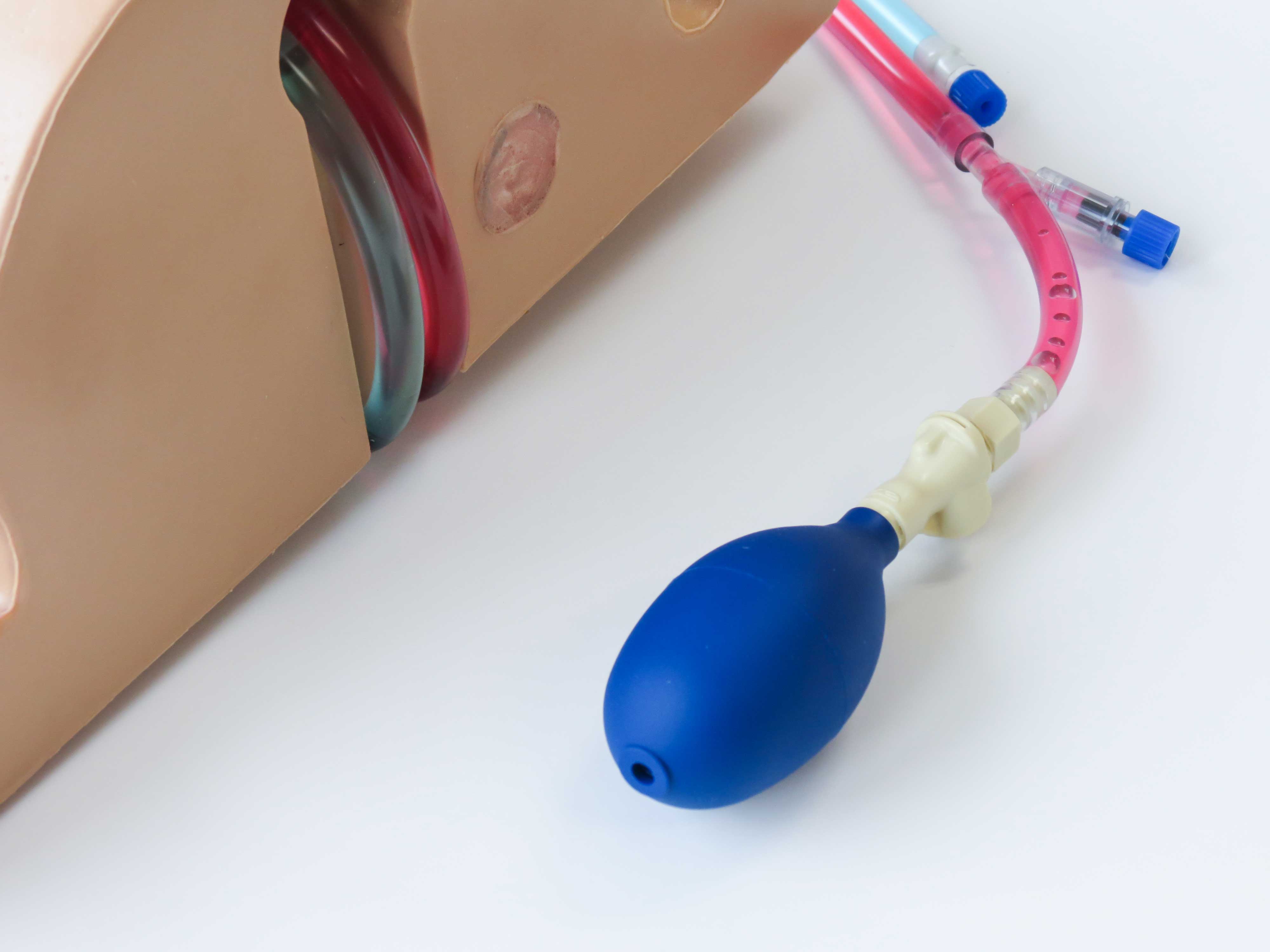

7.Accessing arteries may result in the presence of refill solution dimples at previouscannulation sites; this does not indicate that your training model is damaged.
